Ultimate Ox Kit – 50061K21

$3,362.45

The Ultimate Ox Kit is a complete rigging system that puts numerous rigging options at the user’s fingertips. For example, the user can create a 4-to-1 mechanical advantage on up to a 50’ working height. Similarly, the user can create a 5-to-1 mechanical advantage on up to a 35’ working height.

The Ultimate Ox Kit fits in a small, self-contained bag and can be stored in the back of a truck with ease.

As with most of Buckingham Manufacturing’s products, the UOK is completely customizable. Call customer service to customize or email sales@buckinghammfg.com.

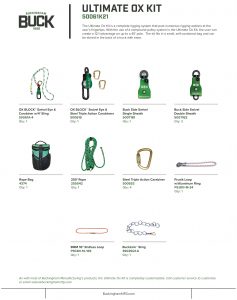

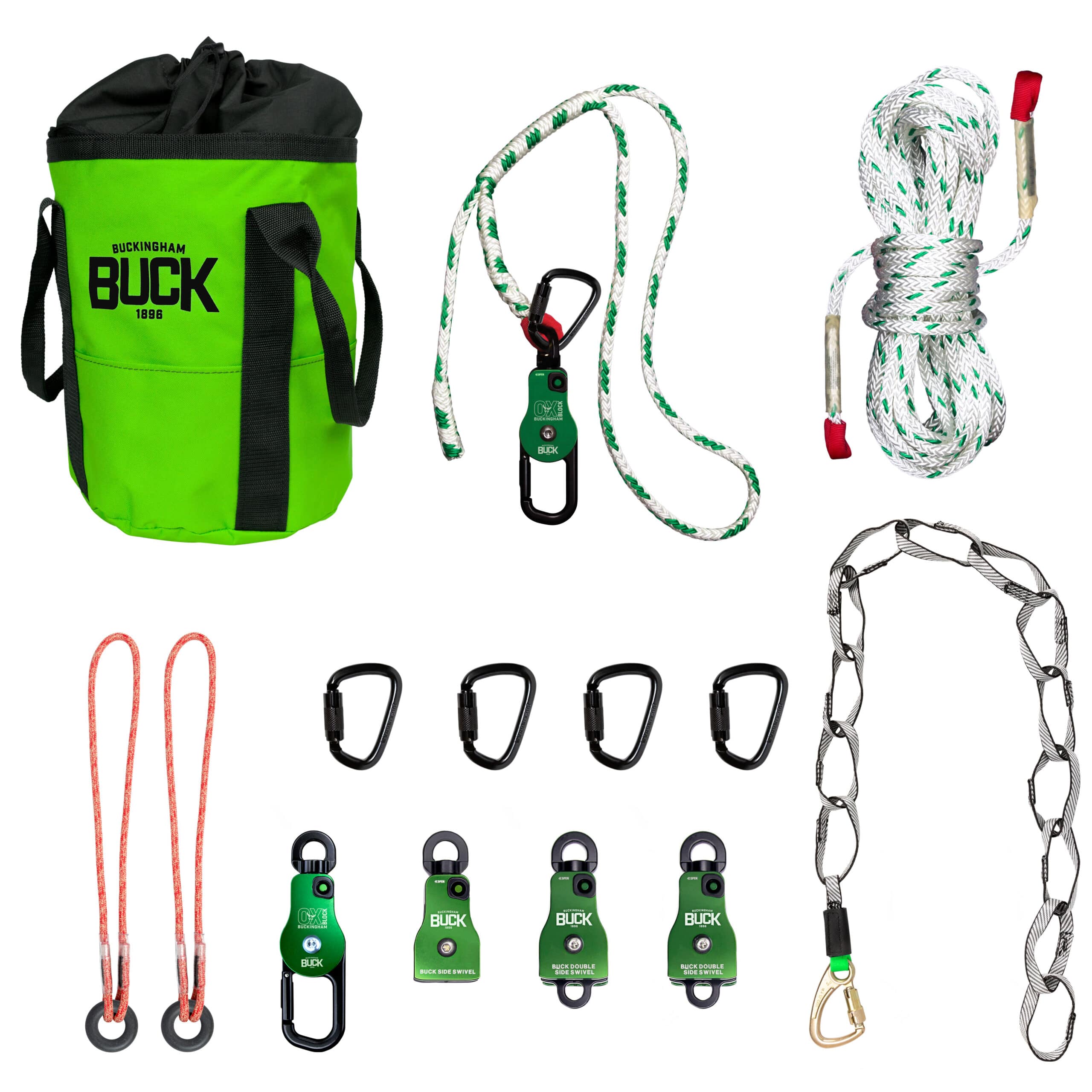

The Ultimate Ox Kit contains:

  • OX BLOCK™ Swivel Eye & Carabiner w/4′ Sling – 50061A-4 (Qty: 1)
  • OX BLOCK™ – 50061 (Qty: 1)
  • Buck Side Swivel Single Sheath – 50071B1 (Qty: 1)
  • Buck Side Swivel Double Sheath – 50071B2 (Qty: 2)
  • Rope Bag – 4374 (Qty: 1)
  • Rope (250′) – 39SAM27Q2-250 (Qty: 1)
  • Steel Triple Action Carabiner – 5005S3 (Qty: 4)
  • Prusik Loop with Aluminum Ring – P9J8V- M-34 (Qty: 2)
  • BuckLink™ Sling – 3903S-6 (Qty: 1)

The OX BLOCK™ is a rope snatchblock with an integrated friction bar used for:

  • Hurtman/self-rescue
  • Lowering
  • Raising
  • Snubbing loads

It allows the rigging professional to handle loads with greater control. When lowering loads, tension is transferred from the worker to the OX BLOCK™.

  • The patented OX BLOCK™ replaces standard handline blocks, parted blocks and various snatch blocks.
  • Has greater WLLs than blocks of similar size.
  • When configured with optional pulleys, the OX BLOCK™ can be used to create a 4:1, 5:1 or 6:1 mechanical advantage reducing the amount of force needed to lift heavy loads.
  • The advantage of the pulleys used by Buckingham is the swivel side plate that allows for quick and easy rope installation without removing the pulley from the connecting device.
  • The Ox Block™ is ASME B30 Compliant.

*Usually ships within 7 to 14 days.

Description

Product Specifications

50061K21 – Ultimate Ox Kit

50061A-45006150071B150071B243745005S3P9J8V- M-343903S-6

Product Name: OX BLOCK™ HANDLINE ASSEMBLY
Material: Polyester Rope, Aluminum OX Block (50061), Alloy Steel Snap (5005S3)
Length: 4′ Sling (Rope), 8.27″ OX Block (50061), 4.68″ snap (5005S3)
Width: 5/8″ Rope, 1.99″ OX Block (50061), 3.07″ snap (5005S3)
Weight Rating: 5,000 lbs.
Weight: 4.25 lbs.
Breaking Strength: Snap (5005S3)- MBS 11,240lbs (50KN), OX Block (50061)- MBS (Sheave to eye)- 10,000lbf/MBS (Hook to eye)- 6,000lbf. WLL-50061A-4 (Sling Only)- Straight- 3,200 lbs, Choker- 2,560 lbs, Basket- 6,400lbs.
Links to Relevant Hardware: 50061 OX Block™
5005S3 Carabiner
OX Block™ Standards: ASME B30 Compliant
Made In USA?: Yes
Product Name: OX Block™
Material: Lightweight Aluminum
Length: 10.5″
Width: 2″
Gate Opening Capacity: 1.5″
Weight: 2.15
Connectors: Four 5005S3 Triple Action Carabiners
HOOK TO EYE:
MBS: 6,000 lbs
WLL: 1,500 lbf
SHEAVE TO EYE:
MBS: 10,000 lbs
WLL: 2,500 lbf
Made In USA?: Yes
Product Name: Buck Side Swivel™
Weight: 1.6 lb
Length: 7″ (178mm)
Width: 3″ (76mm)
Material: Aluminum
Diameter of Eye: Swivel Eye – 1″
Breaking Strength: MBS – 10000 lbf (44KN) / WLL – 2500 lbf (11KN)
Other: Max Rope Diameter – 5/8″ (16mm) / 5/8″ x 2 1/8″ Sealed Ball Bearing Pulley Thickness – 1.813″ (46mm)
Product Name: Dual Buck Side Swivel
Option Number: N/A
Weight: 2.6 lbs
Length: 8″
Width: 3″
Material: Aluminum
Diameter of Eye: Swivel Eye (upper eye) – 1″ / Becket Eye (lower eye) – 0.8″
Breaking Strength: MBS 10000 lbf 44(kn)
Diameter Rope Capacity: 5/8″ (16mm)
Other: Double Pulley
Product Name: Large ROPEPRO™ DELUXE BAG BY BUCKINGHAM International
Height: 16″
Width: 14″
Depth: 16″
Weight: 3.2 lbs
Number of Pockets: 6
Outside Pockets: 6
Inside Pockets: 0
Material: Water Resistant Canvas
2 Way Snap: No
Rain Flap: Water Resistant
Back Straps / Shoulder Straps: Yes / Optional Back Pack Attachment – 4375
Closure Tab: Zipper
Bottom Material: Water Resistant Canvas
Wheels: No
Magnet: No
Attachment Type: Rope Bag
Bucket Hooks Included: N/A
Bucket Hook Model: N/A
Standards: N/A
Product Name: Steel Triple Action Carabiner
Option Number: N/A
Weight: 10.5 oz
Length: 4.68″ (119mm)
Width: 3.07″ (78mm)
Material: Alloy Steel
Diameter of Eye: No Eye
Gate Opening Capacity: 0.94″ (24mm)
Gate Strength: 3600 lbs
Breaking Strength: 11240 lbs (50KN)
Standards Met: CSA Z259.12 / ANSI Z359.12
Other: Triple Action (3)
Product Name: 5/16″ PRUSIK LOOP WITH AN ALUMINUM RING
Material: Warpspeed Red Rope
Prusik Type: Prusik w/ Aluminum Ring
Rope Size: 5/16″
Length: 34″
Max Weight Capacity: 350 lbs when fully equipped
Standards: ANSI Z133
Weight: 0.3 lbs
Made In USA?: Yes
Product Name: BuckLink™ Sling
Overall Length: 6ft long
Width: 3/4″ Spectra
Connector Material: Steel
Material Type: Spectra
Weight: 1.5 lbs
User Weight Capacity: 5000 lbs individual rated loops
Product Type: Sling
Standards: EN362-2004, ANSI/ASSE Z359.12-2009, CSA Z259.12-01 & CSA Z259.12-11 (1711 Snap).
Link to Relevent Hardware: 1711 Snap
Made in USA?: Yes
