The Buck RFP™

Your one-stop solution for fall protection on a roof.

Buckingham has been approached by a number of utilities and contractors to address fall protection for those working on a roof or off a ladder at a customer’s home.

The Buckingham Rooftop Fall Protection Kit provides a temporary vertical lifeline for accessing elevated work areas from a portable ladder. When a bucket truck is available, this system can also be anchored to a bucket or boom depending on your work practices.

This Patent Pending system was developed hand-in-hand with Duke Energy and allows the user to set a lifeline and re-direct lines from the ground which keep the user 100% fall protected while ascending a ladder, working on a ladder, and descending a ladder.

Today, the Buckingham Rooftop Fall Protection Kit is the only solution of its kind on the market.

RFPBASIC Rooftop Basic Kit


Basic RFP system storage bag


150’ 7/16” diameter lifeline

BLT HARNESS – U601A3Q1

Universal X-style harness with sternal D-ring for connection to BuckArrester Mobile Fall Arrester & work positioning D-rings.

The Big Shot - 1027

BuckLaunch device designed to shoot throwline over structure in a safe/controlled manner

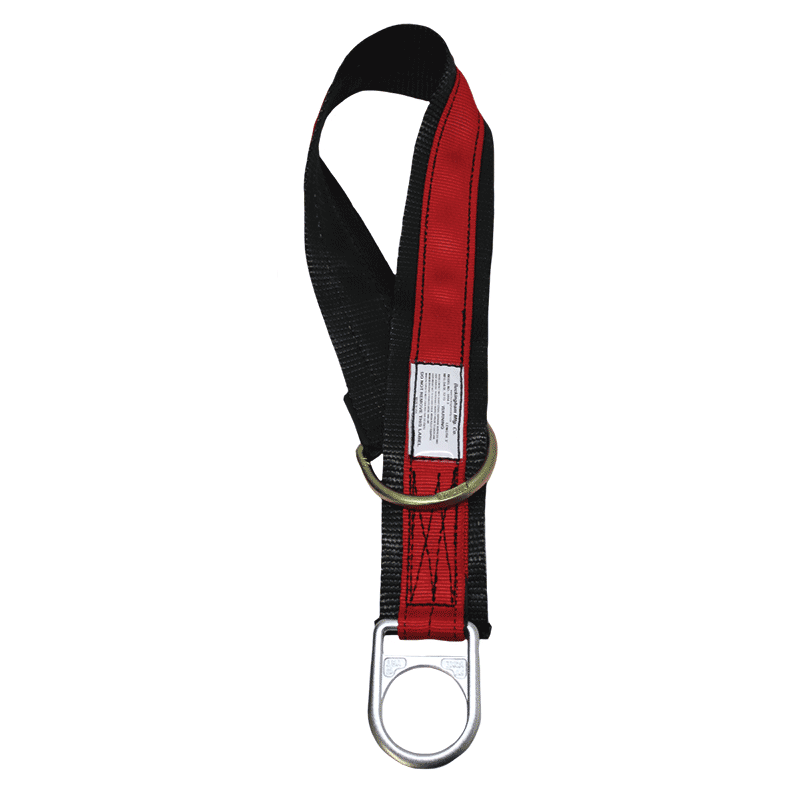

ANCHOR STRAP WITH WEAR GUARD – 3904J12

8’ anchor sling rated to 5,000lbs for use with suitable anchor

Slickline - 17-100

150’ of throw line to be used with throw bag and launched over structure

BISMUTH THROWBAG – 16A1B

12oz. Throw Bag to be attached to throwline and launched over structure


Throw line storage bag

warning flag

RFP Warning Flag

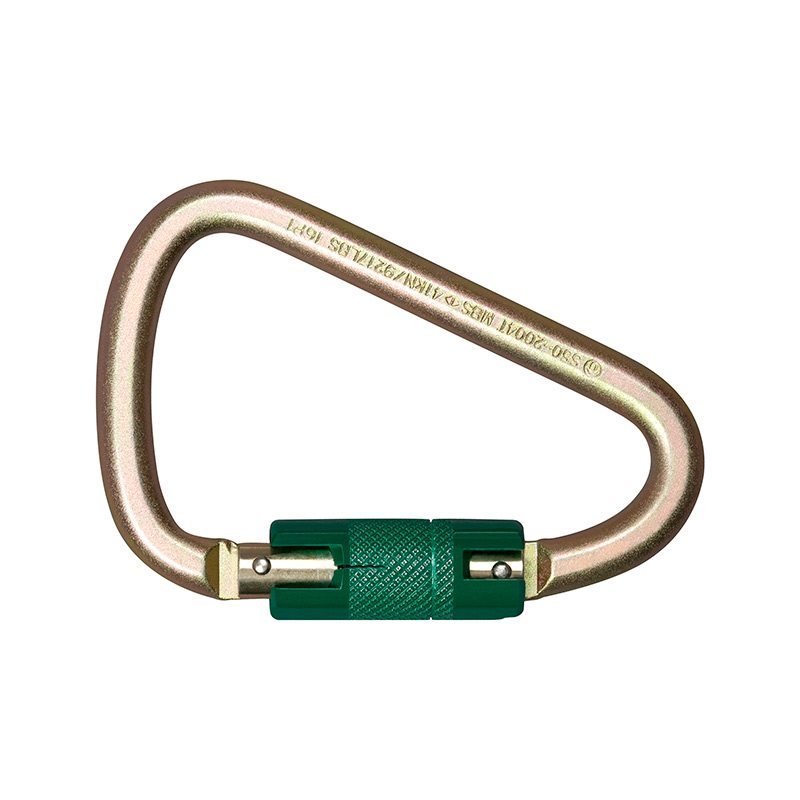

AUTO LOCK STEEL CARABINER W/3600 RATED GATE KEEPER – 5005

3,600lb gate rated triple action carabiner


BuckArrester (Mobile Fall Arrester) designed to arrest a fall off of a ladder. Helpful Hint: To help promote the ease of tracking of the BuckArrester™ when coming down a ladder, simply place thumb behind rope and above the BuckArrester™ and slightly push outward toward your chest.



For more information, please contact Buckingham Customer Service at 1-800-YES-BUCK or sales@buckinghammfg.com

How It Works!

Basic Application

1) Using BuckLaunch™, launch the throw bag with throwline attached over the structure towards your suitable anchor. See instructions & warnings for a list of suitable anchors that Buckingham has tested.
    2) Attach the end of the throw line to the anchor eye of the lifeline and pull over the structure towards the anchor.
    3) Attach lifeline to suitable anchor.
    4) Following the ladder manufacturer’s instructions and your employer’s work practices, install the ladder in the desired location to reach the work area. Install BuckArrerster (Mobile Fall Arrester) on lifeline according to Buckingham’s instructions. Attach BuckArrester to your harness’ sternal D-ring.

    See It In Action!

    For more information, please contact Buckingham Customer Service at 1-800-YES-BUCK or sales@buckinghammfg.com

    RFPREDIRECT Rooftop Re-Direct Kit

    Where a suitable anchor isn’t readily available or maybe a roof that exposes the user to a swing fall – we have also developed a Re-Direct and Load-Sharing application that builds on the Basic Kit above and gives you a variety of options to deal with the more quirky situations.


    Situations Include

    • Chance of the lifeline sliding off peak or edge
    • Questionable anchorage requiring the user to share load between multiple anchors
      •

      Load Sharing & Redirect Components


      Two 8’ Anchor Slings rated To 5,000 lbs For Use With Suitable Anchor


      Two 50’ 7/16” Diameter Lifeline


      Two anchor prusiks


      Three lifeline prusiks



      Load Sharing/Re-Direct RFP System storage bag


      Two 3,600 lbs Gate Rated Triple Action Carabiners



      How It Works!

      Load Sharing & Re-Direct Application





      Depending on the situation the user encounters, the load sharing/re-direct system provides the user with the ability to improvise with the basic system and create a system where you can share multiple anchors and also protect against a potential swing fall.

      To learn more about this redirect kit please contact Buckingham at 1-800-YES-BUCK or sales@buckinghamMFG.com.



      See It In Action!

      RFP Instructions & Warnings

      For more information, please contact Buckingham Customer Service at 1-800-YES-BUCK or sales@buckinghammfg.com
